Internal Grinding Machines

    1. Internal Grinding Machines

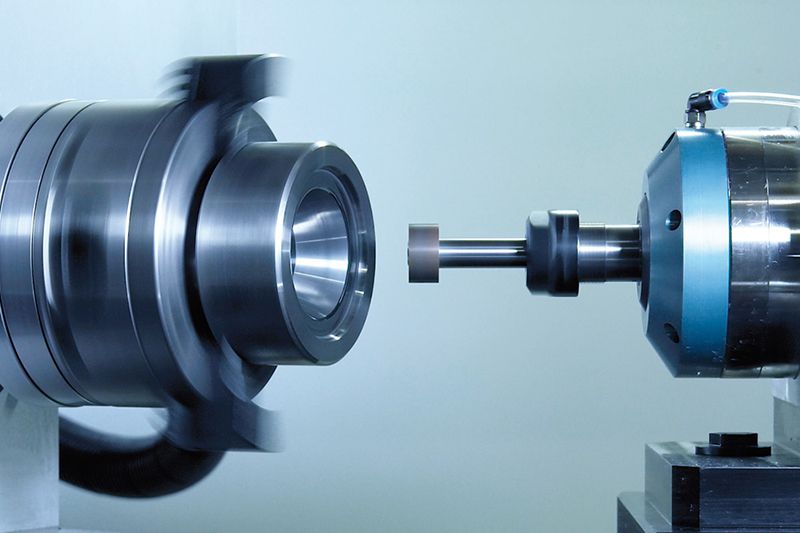

    2. Since 1955, MOUTON RIVOM has been designing and manufacturing internal grinding machines dedicated to the machining of tungsten carbide dies and drawing dies. Our long experience and know-how enable us to supply robust, easy-to-use, reliable and safe automated machines.

      All our machines comply with the requirements of the Machinery Directive 2006/42/EC (CE marking) and are exported worldwide.

Internal Grinding Machines
IG100C

Automatic horizontal grinding machine
Machine with automatic grinding pass and digital automatic angle motion from ø0.8mm

  • Chuck ø100mm
  • Program management by computer numerical control
  • For dies from ø0.80 to ø30mm
  • Machine precision: 5μm
  • Angle precision: ±30’’
  • New motorized lead angle system (0° to 75°)
  • Axis management by stepping motor control allowing an advance in micron
  • Memorizing of 5 operations in « learn » mode on the first die
  • Repeat of the memorized operations to reproduce an identical profile
  • Various spindle types available - depending on material and diameters to be ground
  • Classic version without outer casing
Internal Grinding Machines

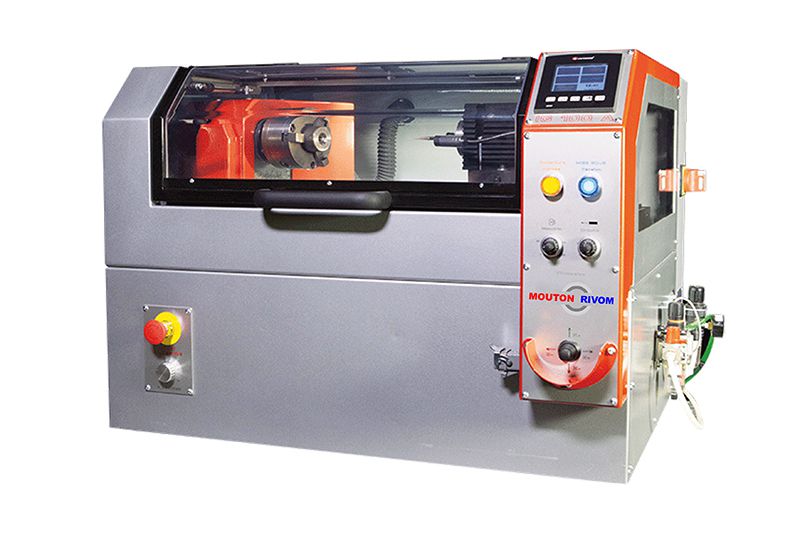

IG100A

Automatic horizontal grinding machine
Machine with automatic grinding pass and digital automatic angle motion from Ø0.8mm

  • Chuck Ø100 mm
  • Program management by computer numerical control
  • For dies from ø0.80 mm to ø30 mm
  • Machine precision: 5μm
  • New motorised lead angle system (0 to 75°)
  • Angle precision: ±30’’
  • Easy to use
  • Axis management by stepping motor allowing an advance in micron
  • Memorising of 5 operations in «learn» mode on the first die
  • Repeat of the memorised operations to reproduce an identical profile
  • Various spindle types available - depending on material and diameters to be ground
  • Totally ducted working area for the user’s safety
Internal Grinding Machines

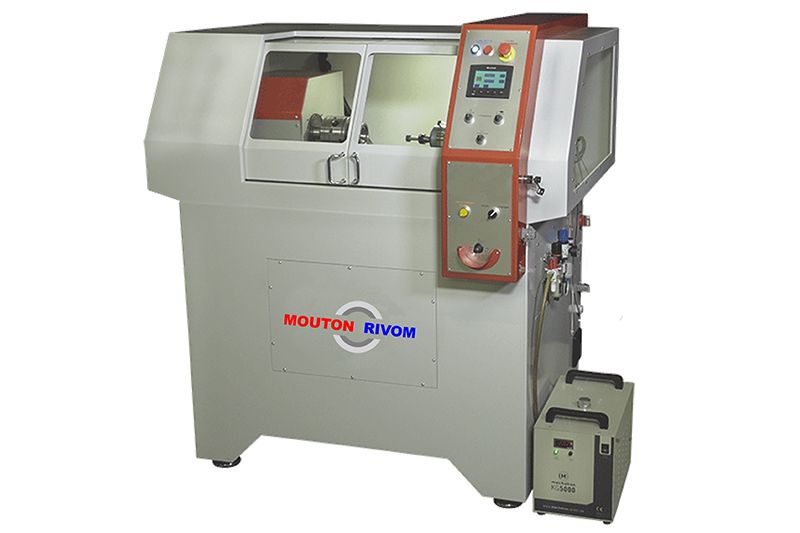

IG125

Automatic horizontal wet grinding machine
High-precision machine able to perform several operations

  • Chuck Ø125 mm or Ø160mm
  • Program management by computer numerical control
  • For dies up to ø70 mm
  • Machine precision: 5μm
  • Easy to use
  • Axis management by stepping motor allowing an advance in micron
  • Memorising of five operations in «learn» mode on the first die
  • Motorised lead angle (0 to 75°)
  • Angle precision: ±30’’
  • Repeat of the memorised operations to reproduce an identical profile
  • Various spindle types available - depending on material and diameters to be ground
  • Totally ducted working area for the user’s safety
